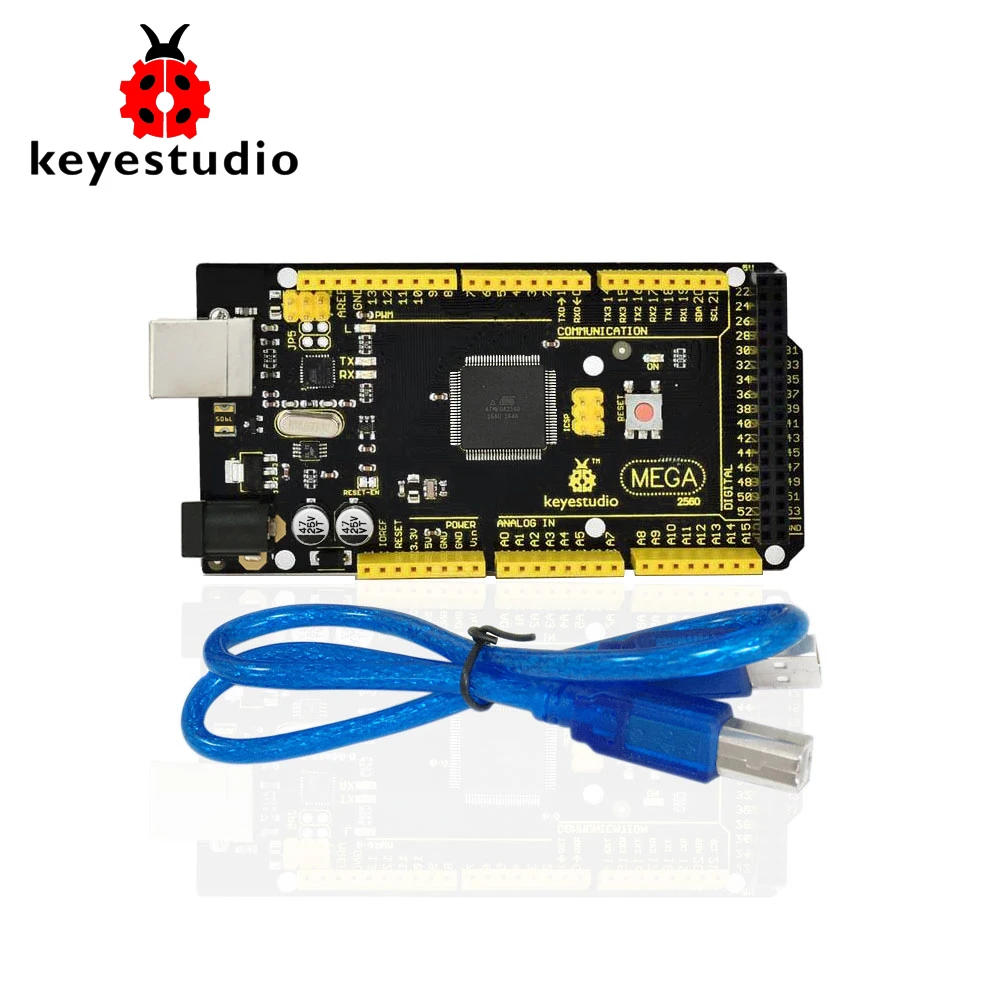

1Pcs Keyestudio MEGA 2560 R3 Development Board+ USB cable+Manual For Arduino Microcontroller

2014 The Last New MEGA 2560 R3 Development Board FOR Arduino An Improved Version
  • Seller keyestudio Official Store
  • List Price US $12.99piece
  • Sale Price US $12.99piece
  • Shipping Free Shipping
  • You Save US $0.00piece0% off
  • Ratings 5.0 (87)

Item Specifics

ConditionNew
TypeDrive IC
Brand Namekeyestudio
is_customizedYes
ApplicationComputer
PackageOther

Product Description

Introduction

Keyestudio Mega (core to ATmega2560) is a development board (used with16MHz crystal oscillator ) of microcontroller. There are 54 I/O (input/output ) digital interfaces (of which 14 are PWM outputs), 16 analog inputs and 4 UART (hardwareserial ports). With its bootloader, program can be downloaded directly with USB and you don’t need to use other external programmer. It can be driven directly by USB, or AC-to-DC adapter and battery.

​Design of Power Supply :

There are two choices (direct power supply trough USB or external power supply) for the power supply system of Arduino Mega, and they can be Automatic switched. External power supply can be AC-to-DC adapter or battery. Voltage input of this control board is 6V~12V, but if the supplied voltage is greater than 12V, the voltage stabilizing device will be likely to be overheated and damaging Arduino MEGA. So we suggest the power supply should be 6.5~12V in operation and recommended supply is 7.5 or 9V.

Specification

Microcontroller:ATmega2560

Operating Voltage:5V

Input Voltage (recommended):7-12V

Input Voltage (limits):6-20V

Digital I/O Pins:54 (of which 15 provide PWM output)

Analog Input Pins:16

DC Current per I/O Pin:40 mA

DC Current for 3.3V Pin:50 mA

Flash Memory:256 KB of which 8 KB used by bootloader

SRAM:8 KB

EEPROM:4 KB

Clock Speed:16 MHz

Shipping list:

keyestudio MEGA 2560 development board x1

USB cable x1

Wiki page:http://wiki.keyestudio.com/index.php/Ks0002_keyestudio_Mega_2560_R3_Development_Board
