CNC Shield Expansion Board V3.0+4pcs A4988/DRV8825 Stepper Motor Driver With Heatsink with UNO R3 for Arduino kits

CNC Shield Expansion Board V3 0 UNO R3 Board For For Arduino 4pcs Stepper Motor Driver
  • Seller BIGTREETECH Store
  • List Price US $11.38piece
  • Sale Price US $11.38piece
  • Shipping Free Shipping
  • You Save US $0.00piece0% off
  • Ratings 4.9 (36)

Item Specifics

Brand NameBIQU
Item TypeDriver

Product Description

CNC Shield Board:

Compact design Coolant enable 2 x End stops for each axis (6 in total) PWM Spindle and direction pins Uses removable A4988 or DRV8825 compatible stepper drivers Stepper Motors can be connected with 4 pin molex connectors or soldered in place Runs on 12-36V DC. (At the moment only the DRV8825 drivers can handle up to 36V so please consider the operation voltage when powering the board.

A4988 Stepper Motor Driver:

A4988 Stepper Motor Driver Board is a breakout board for Allegro’s A4988 DMOS Micro stepping Driver with Translator and Overcurrent Protection; please read the A4988 datasheet carefully before using this product.

Optional step five modes: full, 1/2, 1/4, 1/8 and 1/16 Load short-circuit protection Ground fault protection Thermal shutdown circuitry 3.3 and 5 V compatible logic supply Cross-current protection Internal UVLO Synchronous rectification for low power dissipation Mix with slow current decay modes Automatic current decay mode detection / selection Low RDS (On) Output

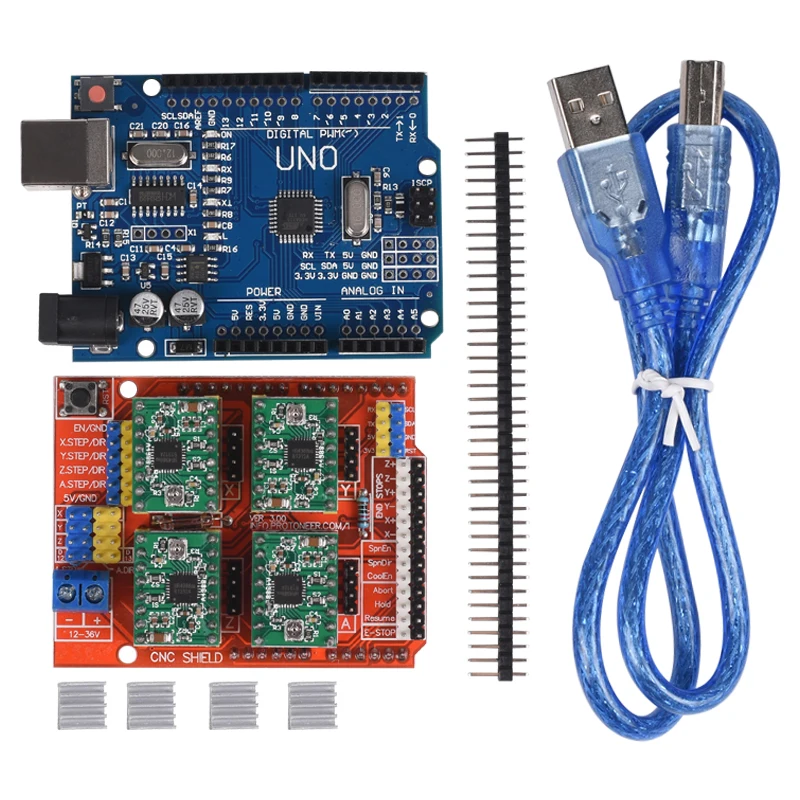

1 x CNC Shield V3

1 x UNO R3 with USB

4 x A4988/Drv8825 with heatsink
