High Quality Sim900 Gprs Gsm Shield Development Board Quad Band Module With Sim

High Quality Sim900 Gprs Gsm Shield Development Board Quad Band Sim900 Module Sim900 Board With Sim
  • Seller -
  • List Price -piece
  • Sale Price -piece
  • Shipping Free Shipping
  • You Save -0.00piece0 off
  • Ratings 4.9 (95)

Item Specifics

ConditionNew
Brand NameArtillery
TypeVoltage Regulator

Product Description

Please read before buying:

Because ordinary parcels do not have tracking information, so encountered the peak season of logistics, ordinary parcels will be extended to arrive, so if you mind the speed of logistics, please pay the registration fee, with faster logistics speed.
When encountering slight product damage, bent pins, and scratches on the case, we will not accept refunds of disputes if they do not affect use. If you mind this situation, please do not purchase my product. When you buy my product, it is the default acceptance of this article! ! ! So we will not accept your dispute.

100% brand new and high quality

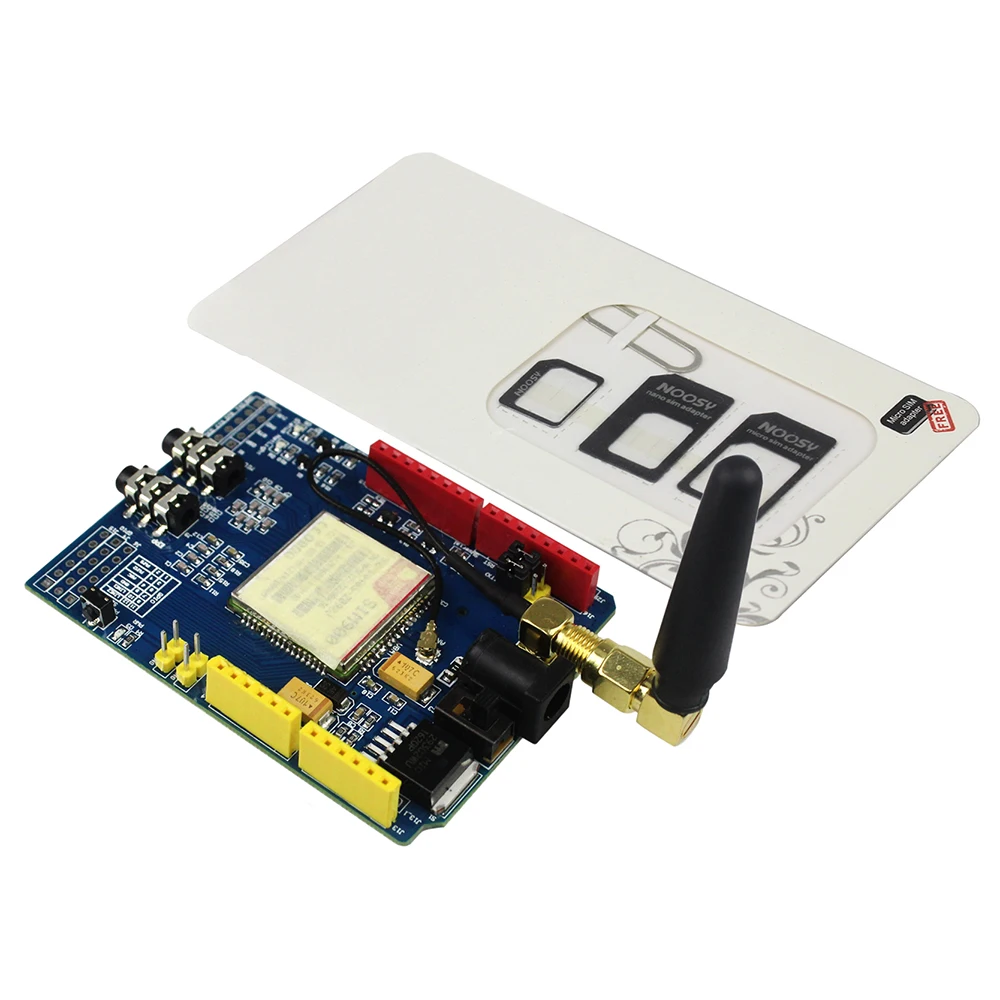

The GPRS Shield is based on SIM900 module from SIMCOM . The GPRS Shield provides you a way to communicate using the GSM cell phone network. The shield allows you to achieve SMS, MMS, GPRS and Audio via UART by sending AT commands (GSM 07.07 ,07.05 and SIMCOM enhanced AT Commands). The shield also has the 12 GPIOs, 2 PWMs and an ADC of the SIM900 module(They are all 2V8 logic) present onboard.

Quad-Band 850 / 900/ 1800 / 1900 MHz - would work on GSM networks in all countries across the world.

GPRS multi-slot class 10/8

GPRS mobile station class B

Compliant to GSM phase 2/2+

Class 4 (2 W 850 / 900 MHz)

Class 1 (1 W 1800 / 1900MHz)

Control via AT commands - Standard Commands: GSM 07.07 & 07.05 | Enhanced Commands: SIMCOM AT Commands.

Short Message Service - so that you can send small amounts of data over the network (ASCII or raw hexadecimal).

Embedded TCP/UDP stack - allows you to upload data to a web server.

RTC supported.

Selectable serial port.

Speaker and Headphone jacks

Low power consumption - 1.5mA(sleep mode)

Industrial Temperature Range - -40°C to +85 °C

Size:8.5x5.7x2cm(approx)

1x SIM900 Module
