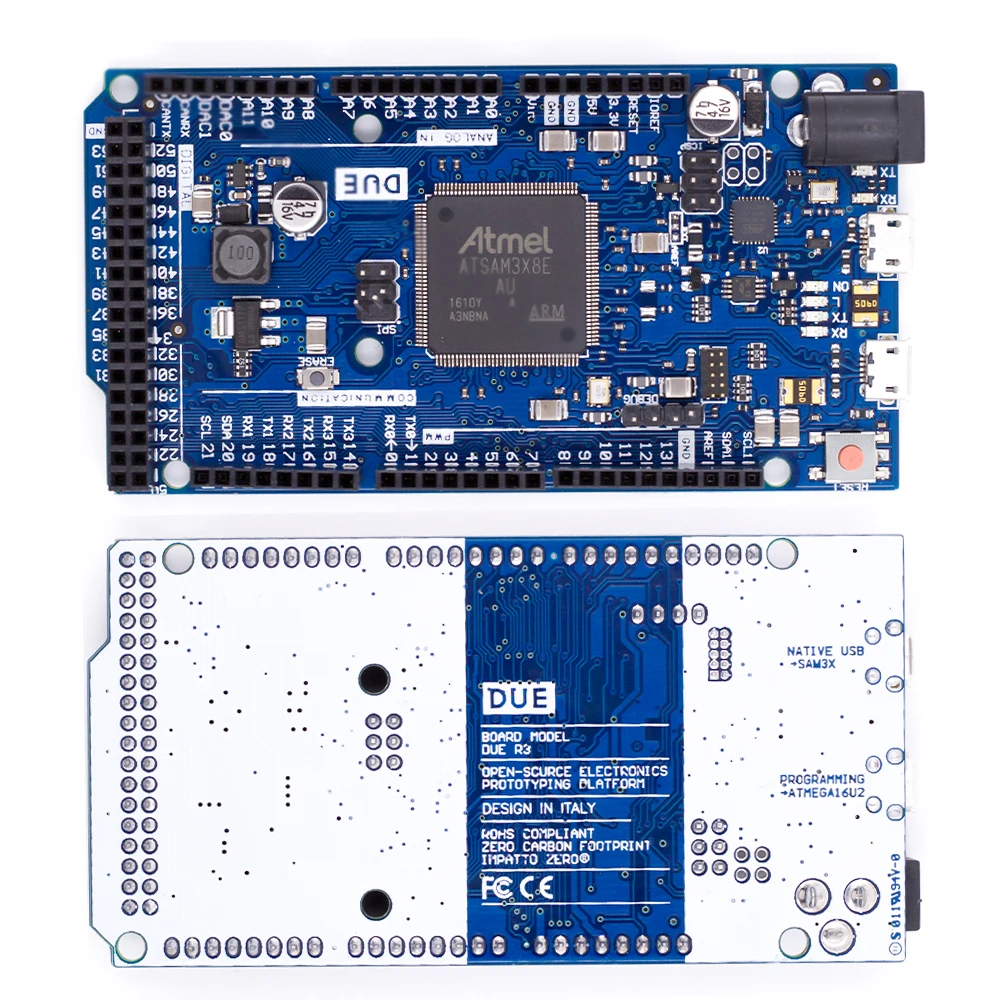

NEW Official Compatible DUE R3 Board SAM3X8E 32 bit ARM Cortex M3 / Mega2560 Duemilanove 2013 For Arduino UNO Due

NEW Official Compatible DUE R3 Board SAM3X8E 32 Bit ARM Cortex M3 Mega2560 R3 Duemilanove 2013
  • Seller Kuongshun Elec. Makers Store
  • List Price US $14.80piece
  • Sale Price US $13.32piece
  • Shipping Free Shipping
  • You Save US $1.48piece10% off
  • Ratings 4.9 (66)

Item Specifics

Brand NameArduino
TypeVoltage Regulator
ConditionNew
ApplicationComputer
is_customizedYes

Product Description

Note:
This is not the same as other UNO boards, the Due board runs at 3.3V. The maximum voltage that the I/O pins can tolerate is 3.3V. Providing higher voltages, like 5V to an I/O pin could damage the board.
ARM core strengths
The use of 32 bit ARM core Due compared to the previous use of the other Iduino core 8 AVR more powerful.
The main differences are:
* 32 bits at a clock can process 32 bits of data.
* CPU clock frequency of 84Mhz
* 96 SRAM KBytes
* 512 Flash KBytes
* A DMA controller, can reduce the pressure on the CPU to do a lot of computing
Features:
Microcontroller: AT91SAM3X8E
Operating Voltage: 3.3V
Input Voltage (recommended): 7-12V
Input Voltage (limits): 6-16V
Digital I/O Pins: 54 (of which 12 provide PWM output)
Analog Input Pins: 12
Analog Outputs Pins: 2 (DAC)
Total DC Output Current on all I/O lines: 130 mA
DC Current for 3.3V Pin: 800 mA
DC Current for 5V Pin: 800 mA
Flash Memory: 512 KB all available for the user applications
SRAM: 96 KB (two banks: 64KB and 32KB)
Clock Speed: 84 MHz
Package Includes:
•1 x AT91SAM3X8E DUE Board
