Aihasd English Nextion 2.4" TFT 320 x 240 Resistive Touch Screen UART HMI Smart raspberry pi LCD Module Display For Arduino

Nextion 2 4 TFT 320 X 240 Resistive Touch Screen UART HMI Smart Raspberry Pi LCD
  • Seller Aihasd Online Store
  • List Price US $15.89piece
  • Sale Price US $15.89piece
  • Shipping Free Shipping
  • You Save US $0.00piece0% off
  • Ratings 4.9 (37)

Item Specifics

Brand NameAihasd
TypeTFT

Product Description

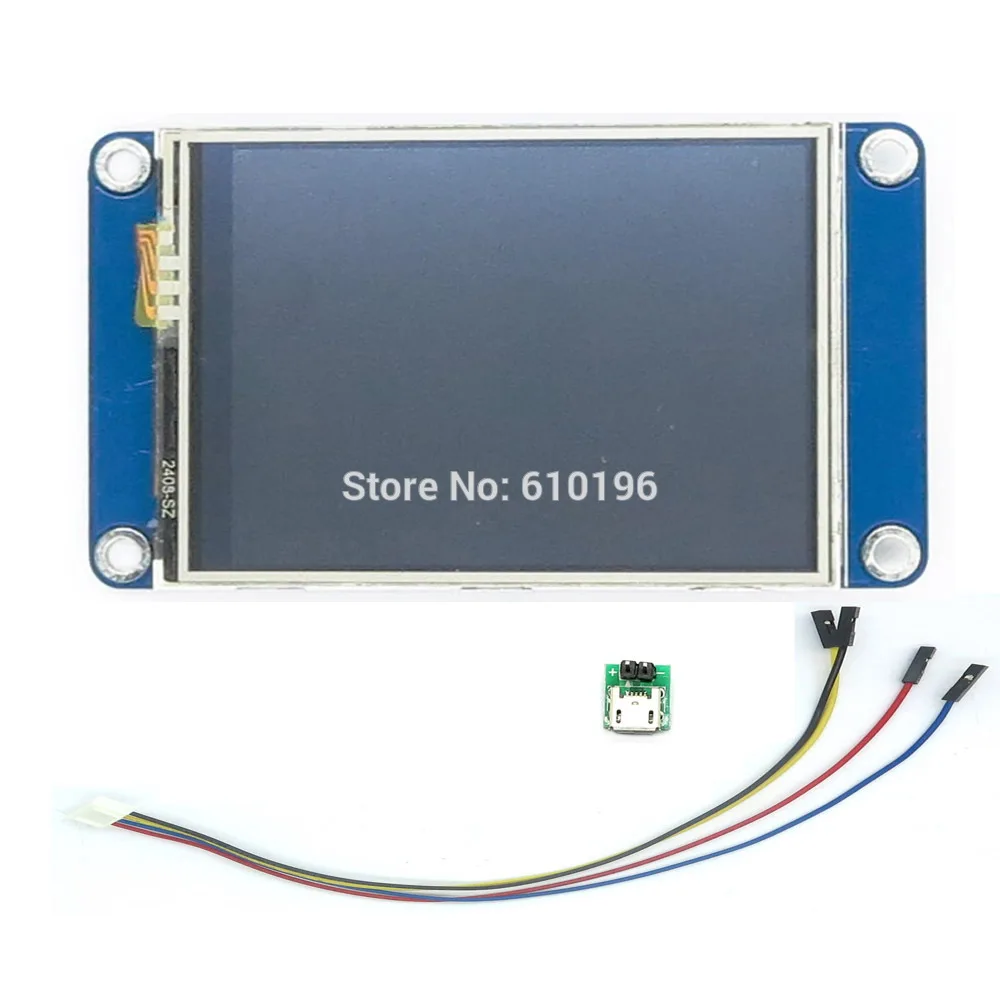

Nextion 2.4" TFT 320 x 240 Resistive Touch Screen UART HMI Smart raspberry pi LCD Module Display For Arduino TFT English

Description:
Nextion is a Seamless Human Machine Interface (HMI) solution that provides a control and visualisation interface between a human and a process, machine, application or appliance. Nextion is mainly applied to IoT or consumer electronics field. It is the best solution to replace the traditional LCD and LED Nixie tube.

This solution includes hardware part - a series of TFT boards and software part - Nextion editor. Nextion TFT board uses only one serial port to do communicating. Let you get rid of the wiring trouble. We notice that most engineers spend much time in application development but get unpleasant results. In this situation, Nextion editor has mass components such as button, text, progress bar, slider, instrument panel etc. to enrich your interface design. And the drag-and-drop function ensures that you spend less time in programming, which will reduce your 99% development workloads. With the help of this WYSIWYG editor, GUI designing is a piece of cake.

It\'s easy to adapt Nextion family HMI to existing projects, you just need to provide it a UART.

NX2432T024 is a powerful 2.4\'\' HMI, which is member of Nextion family. Features include: a 2.4" TFT 320 x 240 resistive touch screen display, 4M Flash, 2KByte RAM, 65k colors.


Features:
English version
320 x 240 Resolution
RGB 65K true to life colours
TFT Screen with integrated 4-wire Resistive Touch Panel
Easy 4 pin interface to any TTL Serial Host
4M Flash memory for User Application Code and Data
On board micro-SD card for firmware upgrade
Visual Area:36.72mm(L)×48.96mm(W)
Adjustable Brightness:0~180 nit, the interval of adjustment is 1%
5V90mA power conusmption

Data download:

Document link:

More datasheet: https://www.adrive.com/public/6WtHW2/F000310%20NX3224T024.rar

Nextion Editor:https://www.adrive.com/public/JEVwGg/Nextion%20Editor.rar

Package Included:
1 X 2.4\'\' UART HMI LCD Module
1 X 4P Cable
1 X UB to 2pin connector
Packed Safely in Bubble Bag.
