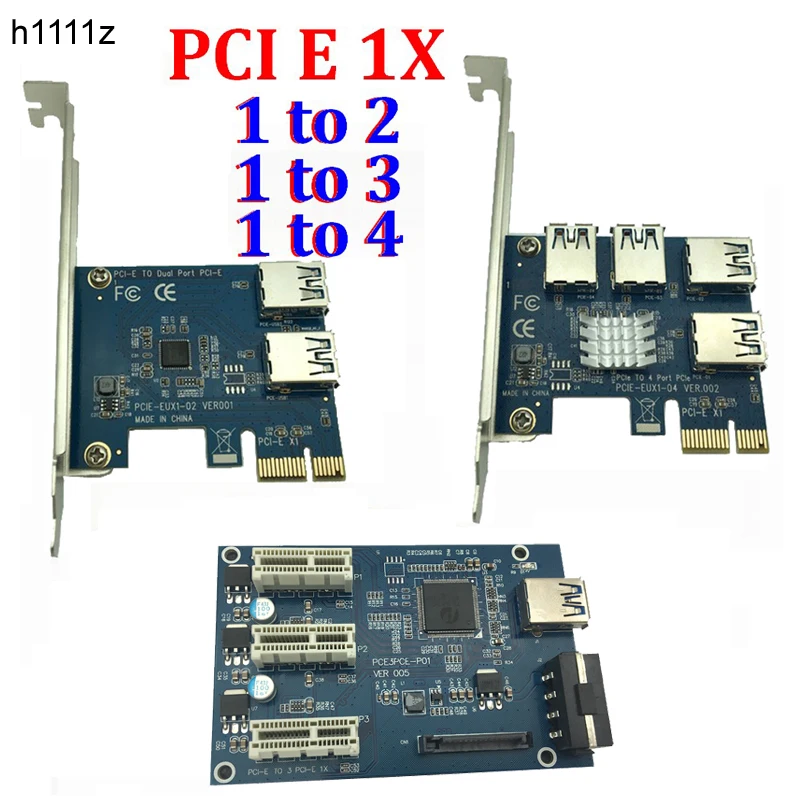

PCI E 1 to 3 / 4 2 express 1X slots Riser Card Mini ITX external slot adapter PCIe Port Multiplier VER005
- Seller Bitcon Miner Mining Store
- List Price US $15.78piece
- Sale Price US $10.26piece
- Shipping Free Shipping
- You Save US $5.52piece35% off
PCI E 1 to 3 / 4 / 2 PCI express 1X slots Riser Card Mini ITX to external 3 PCI-E slot adapter PCIe Port Multiplier Card VER005
PCI-E 1X 1 TO 3 :
If you need more than one PCI-E x1 slot on the motherboard was not any so much, it touches you can think about it. It consists of two parts, one main card, interface installed via PCI-E X1 on the motherboard, two equipment cards, both of which are connected together via USB 3.0 cable.
The device card also uses the United States Pericom Pericom PI7C9X bridge chip, for switching PCI-E, PCI-E between.
But even USB 3.0, but also the theoretical bandwidth 5Gbps (625MB / s), one Into four Then remove the loss would only 150MB / s, and even PCI-E 1.x single-channel bandwidth also has 250MB / s, So this stuff more than enough to give you the best slots, there will not be enough bandwidth, not only for the performance requirements of the place. Therefore, the transferred PCI-E slot is the best version above 2.0, the 3.0 version is better. Several Divided PCI-E 1X slot all is gen2 mode, even if gen1 previously ,it can be ok!
2 layer PCB bard designing.
Compliant with PCI express 2.0, 1.1 Specification
1-slot PCI-E 1X to 3 slot 1X riser card with high speed USB 3.0 cable.
High speed USB 3.0 shield cable is flexible for 1U,2U,3U chassis.
Support 3 port high speed PCIe 1X card.
Solid capacitor provide extra stable power supply for PCI-e card
PCI-E Card size:(L*W*H)11.80*6.50*1.90cm/4.65"*2.56"*0.75"
USB cable length 60cm/1.97ft
Product installation instructions
First, when you use the adapter card, the computer needs to be turned off before they can plug the adapter card.
1. The first step, first of PCIe USB card plugged into the motherboard\'s PCIe slot.
2. Use USB3.0 data cable adapter to connect the ends of the two USB port. Plug in the power supply.
3.The third step: After completion of the above two steps, first in no hurry to insert your PCI-E card, start the computer to see if your computer has been identified to the riser card, if you did not find the card, repeat the above operation (Note: The first time to insert card to start the computer, into the system in general will be prompted to install new hardware, such as "PCI standard PCI-to-PCI bridge" , you need to wait for it to automatically install the complete, individual anti-virus software will prevent these files installation, note skipped), when your computer has been recognized the card,blue LED PCI slot on normal light, computer equipment manager in the system device will show an increase of several "PCI standard PCI-to-PCI bridge
4. After completing the above three steps, turn off the computer, plug in your PCI-E card, to be careful not to insert the contrary,
5. then boot into the system, install PCI-E Card Driver
PCI card Do not insert anti, anti-insert can easily lead to burn out
Size for manual measurement, there may be a 0 to 2 cm error, belongs to the normal phenomenon.
And due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
PCI E 1 TO 2-port / 4-port Riser Card :
PCI-E 2/4 Port USB3.0 Mining Card
Plug and Play
Interface Type: PCIE 1X to 2/4* USB
Bus Type: PCI-Express X1
Applicable Slot: PCI-E X1, X4, X8, X16
Transmission speed: 5Gbps
Use: For Mining
Support system: DOS, Linux, Windows XP/7/8/10
1. An effective solution to the motherboard PCI-E interface is not enough, an interface can be extended out of 2-port or 4-port usb3.0;
2. The use of plug-in design, without extension cable directly into the motherboard interface, and can be fixed to the chassis, the stability and reliability greatly improved!
3. The main control board adopts PCI-E interface direct power supply mode, no need to external power cord, so that the main control board power from outside interference, higher stability!
4. Reduce the number of adapter and adapter cable, a line directly to the interface, effectively reduce the interface interference and wire loss, to ensure data reliability, thereby improving work efficiency!
1 x PCI-Express Riser Card
PCI-E 1x 1 to 3 Port PCI-E 1x:
(Important Tips: Now this item the usb cable color is blue, not white. But don\'t worry, other all is same, such as the cable connector and the function is 100% same. If you care about the color, pls do not buy. Thanks!)
PCI-E to Dual Port PCI-E:
PCI-E to 4 Port PCI-E:
