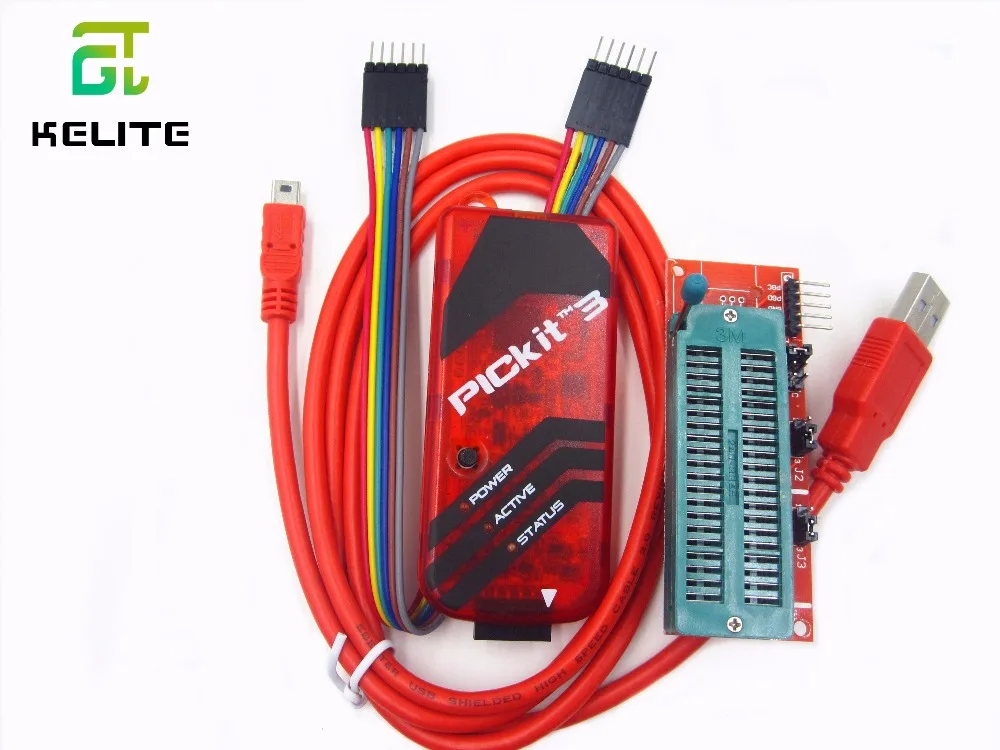

New 1set PICKIT3 Programmer + PIC ICD2 PICKit 2 PICKIT 3 Programming Adapter Universal Seat

New 1set PICKIT3 Programmer PIC ICD2 PICKit 2 PICKIT 3 Programming Adapter Universal Programmer Seat
  • Seller Keli-te Store
  • List Price US $12.35piece
  • Sale Price US $11.73piece
  • Shipping Free Shipping
  • You Save US $0.62piece5% off
  • Ratings 4.9 (97)

Item Specifics

UsageTemperature Sensor
TypeVibration Sensor
TheoryResistance Sensor
is_customizedYes
Brand NameHAILANGNIAO
MaterialMixture
OutputSwitching Transducer

Product Description

PICKIT3 Programmer PIC ICD2 PICKit 2 PICKIT 3 Programming Adapter Universal Programmer Seat

PICKIT3 Programmer Description:

USB (Full speed 12 Mbits/s interface to host PC) Real-time execution MPLAB IDE compatible (free copy included) Built-in over-voltage/short circuit monitor Firmware upgradeable from PC/web download Totally enclosed Supports low voltage to 2.0 volts (2.0v to 6.0v range) Diagnostic LEDs (power, busy, error) Read/write program and data memory of microcontroller Erase of program memory space with verification Freeze-peripherals at breakpoint Program up to 512K byte flash with the Programmer-to-Go

The MPLAB PICkit 3 allows debugging and programming of PICĀ® and dsPICĀ® Flash microcontrollers at a most affordable price point using the powerful graphical user interface of the MPLAB Integrated Development Environment (IDE). The MPLAB PICkit 3 is connected to the design engineer\\\\\\\'s PC using a full speed USB interface and can be connected to the target via an Microchip debug (RJ-11) connector (compatible with MPLAB ICD 2, MPLAB ICD 3 and MPLAB REAL ICE).


Universal Programmer Seat Description:

Instructions for use:

Installing the microcontroller, 28-pin, 40-pin microcontroller left aligned 28/40P (A) This flag line short-circuit cap on the A position.

The 8,14,18,20-pin microcontroller aligned on the left 8P/14P/18P/20P flag line (B), shorting cap on the B position.

The ICD2, KIT2, KIT3 crystal head or 6Pin Block programming connection for programming the programming operation. (Note: a separate program of the seat can not be programmed the chip is programmed functions)

The seat supports the following programming microcontroller:

PIC16/18XX 40PIN Series devices (except 16F59)

PIC16/18XX 28PIN Series devices (except 16F57)

PIC16/18XX 18PIN Series devices

The PIC 8PIN/14PIN/20PIN family of devices (except 10FXX)

Package Included:

1 X PICKIT2 Simulator

1 X USB cable

1 X 6pin cable

1 x Universal Programmer Seat
